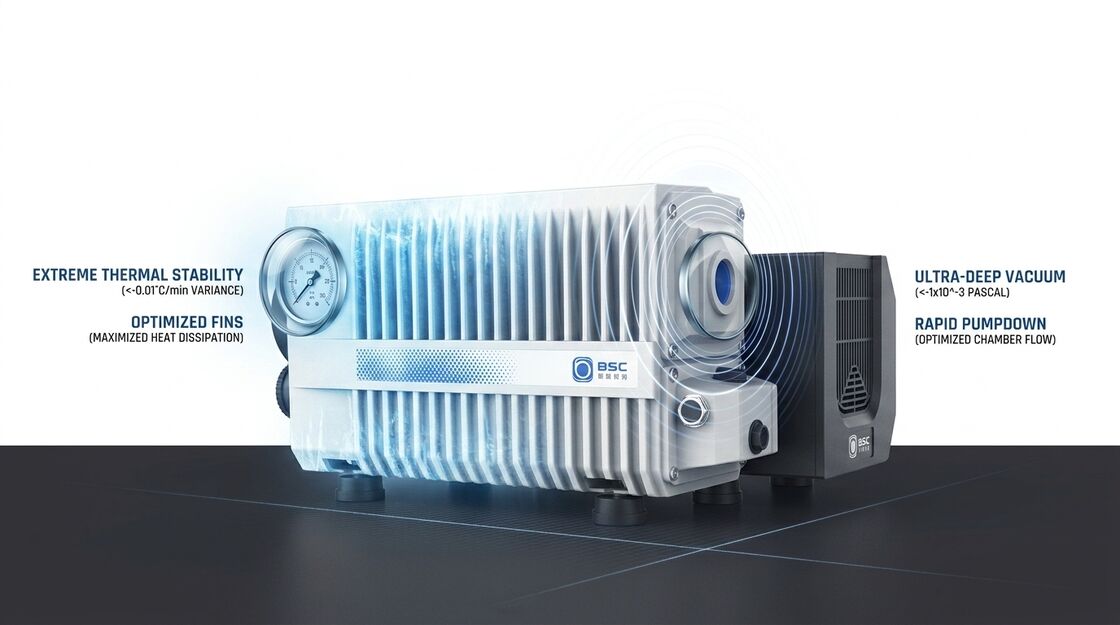

SRV200 200m³/h Oil Lubricated Single Stage Rotary Vane Vacuum Pump for Industrial Vacuum Applications

Name: SRV200 200m³/h Oil Lubricated Single Stage Rotary Vane Vacuum Pump for Industrial Vacuum Applications
Brand: Ningbo Baosi Energy Equipment Co., Ltd.
SKU: SRV200
Price: 1710.00 USD
Availability: InStock

Dettagli del prodotto:

Luogo di origine:	Cina
Marca:	BSC
Certificazione:	CE
Numero di modello:	SRV200

Informazioni dettagliate

Luogo di origine:

Cina

Marca:

BSC

Certificazione:

Numero di modello:

SRV200

Superficie:

pittura

Colore:

RAL 7047, Nero

Tasso di pompaggio:

160m³/h 50Hz

Necessità di petrolio:

16~20 litri

Livello di rumore:

Potenza del motore:

4,0 kW

Velocità di rotazione normale:

1450 50Hz

Livello di rumore:

75 dB (A)

Tasso di pompaggio:

180 m³/ora (50Hz) / 217 m³/ora (60Hz)

Potenza del motore:

4 chilowatt

Velocità di pompaggio:

180 m³/ora (50Hz) / 217 m³/ora (60Hz)

Pressione estrema:

≤8 Pa (gas ballast spento) / ≤70 Pa (gas ballast acceso)

Capacità dell'olio:

8 l

Ingresso:

G2/VG50

Presa:

Peso:

165 kg

Dimensione (L*W*H):

912x568x466 mm

Serie:

Pompa per vuoto rotativa a palette monostadio SRV

Necessità di petrolio:

9 l

Capacità dell'olio:

9 l

Peso:

172 kg

Evidenziare:

High Light

Evidenziare:

SRV200 Single Stage Pump

200m³/h Rotary Vane Pump

Industrial Vacuum Pump

Informazioni di trading

Quantità di ordine minimo:

1 set

Prezzo:

Negotiate

Imballaggi particolari:

Scatola di legno

Tempi di consegna:

5-30 giorni

Termini di pagamento:

T/T

Capacità di alimentazione:

1000 set al mese

Descrizione del prodotto

200m³/h High Pumping Speed Single-Stage Oil Sealed Rotary Vane Vacuum Pump SRV200 High pumping speed to maximize your productivity and performance Technical Data Model SRV200 Pumping speed 180 m³/h (50Hz) / 217 m³/h (60Hz) Ultimate pressure ≤8 Pa (gas ballast off) / ≤70 Pa (gas ballast on) Noise level 75 dB(A) Motor power 4.0kW Oil capacity 9 L Inlet G2/VG50 Outlet G2 Weight 172 kg Size (L*W*H) 912x568x466 mm Application Vacuum metallurgy process Thin-film coating technologie
